Laminating machine

Introduction

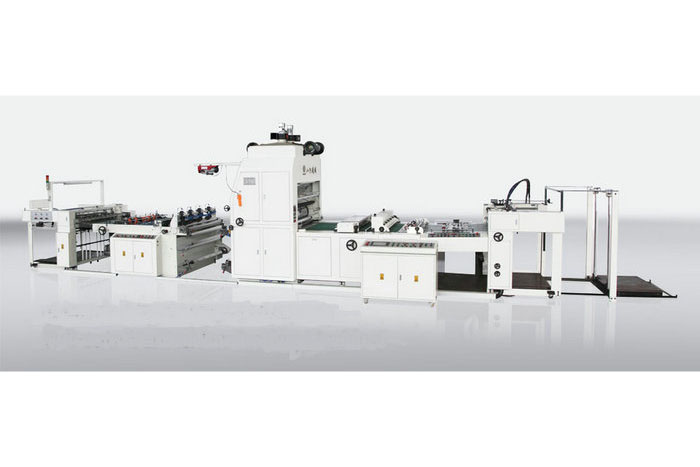

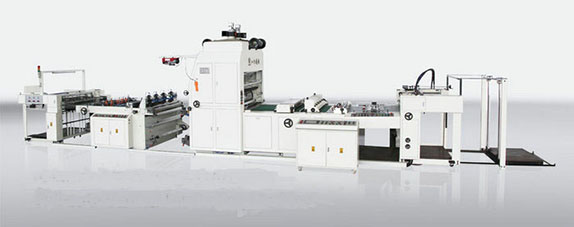

JBD-FM laminating machineis a kind of deeply-processed equipment for EPE foam sheet. It is to make laminated product with PE film or aluminum oil. The laminated foamed sheet can improve the intensity with the features of damp proofing, waterproofing, waterproffing and good surface.
Furthermore ,it can print words and pictures on surface,and further improve the quality and applications. It can be used in rhe packing of inner,precision instrument, top-grade porcelain and so on.

Application

Features

Automatic feed:
With a high-precision linear guide, the feeder head makes automatic adjustment
through the high-speed operation of the PLC depending on different  sizes.

powder remover:
Power removal with brush and double electrostatic seat by means of vacuum
adsorption and stable paper feed.

Intelligent temperature control:
The heating rollers for the top and bottom seats are provided with a heat conducting
oil circulating system and a reliable and accurate frequency-changing temperature
controller.

Pressure rollers:
The design of the large-diameter composite rollers achieves uniform and accurate
thermal distribution through a heat conducting oil heating system.

Electro-hydraulic:
The composite pressure roller is controlled freely and accurately in an
electro-hydraulic manner.

Coating and gluing:
The stepless speed regulation and automatic tension control at the inlet effectively
stabilizes coating amount.

Drying system:
The unique drying design and double-surface heating is fast in drying and
energy-saving by heat recovery.

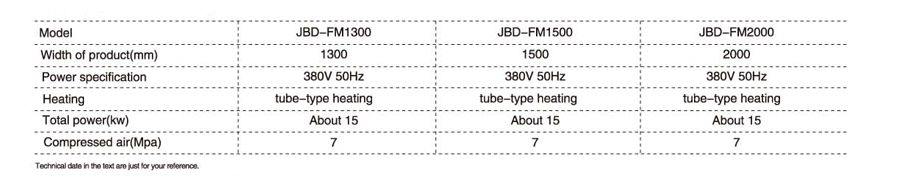

Specification
